HIKVISION Fisheyes Mode Select (iVMS-4500 Mobile App) (TVI)
Last Updated 4 years ago
If you have installed the HIKVISION Fisheyes Camera, here's how to select between the various mode of display.
To Enter the the Mode Selection
Select the Fisheyes Camera so that it is full screen.

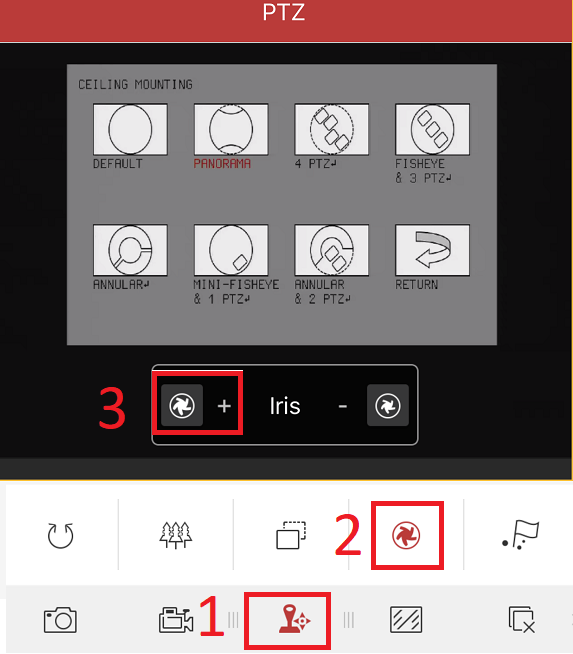

1. Press on the PTZ Icon
2. Select IRIS
3. Select IRIS+
The menu would appear.

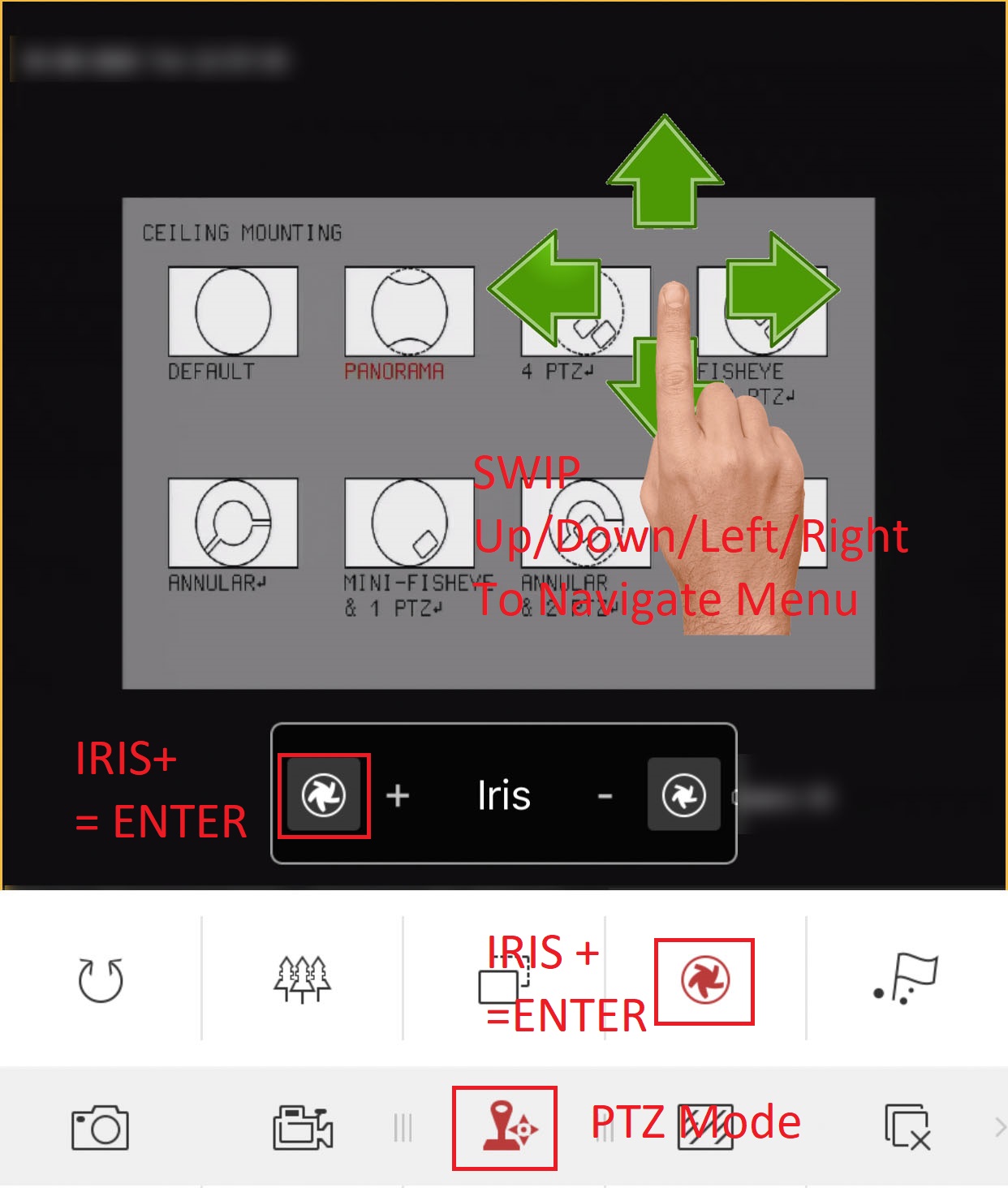

Here's how to navigate the menu.
1. Swip your finger Up/Down/Left/Right to navigate through the menu.
2. Use the IRIS+ Button as "Enter/Select"
Select Ceiling Mount/Wall Mount (If first time configuration) to enter the various different available display mode.
Here's the various mode

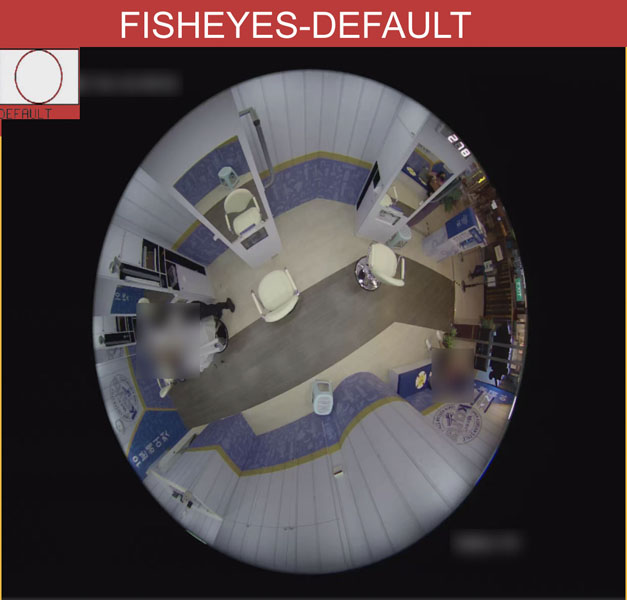

1. Default - Fisheyes
- 360 Degree Fisheyes view

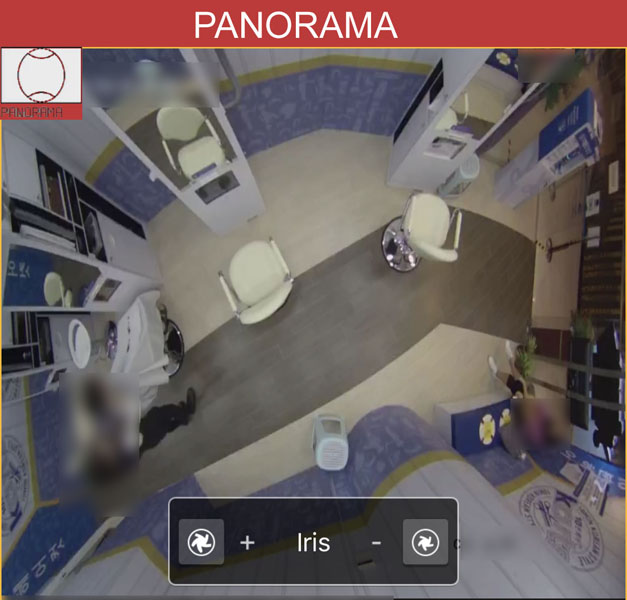

2. Panorama
- Wide angle 360 degree dewrapped view of the whole alrea

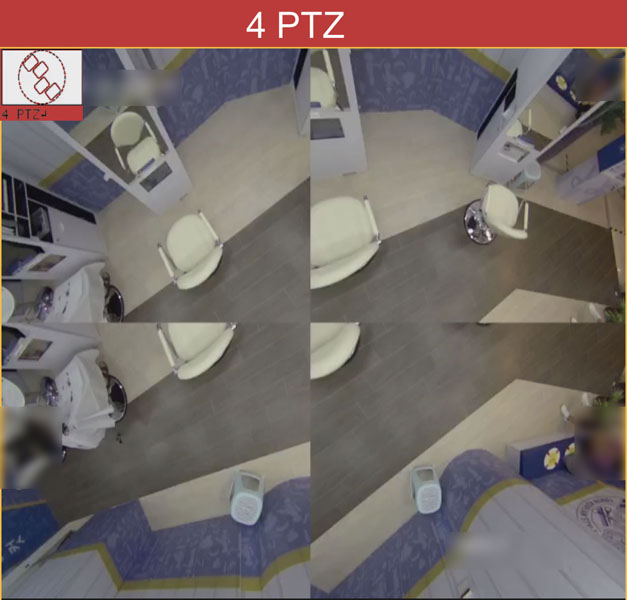

3. 4 x PTZ
4 x virtual camera views that can be adjusted to individual view

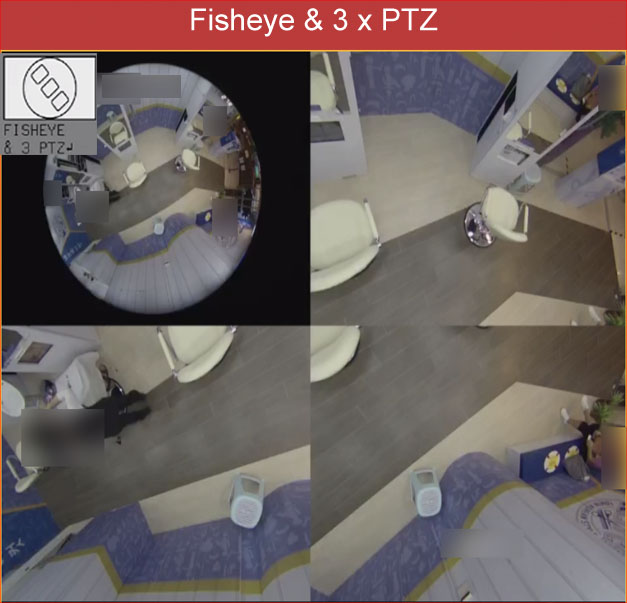

4. Fisheye & 3 PTZ
- Fisheye View and 3 x Virtual Camera view (adjustable)

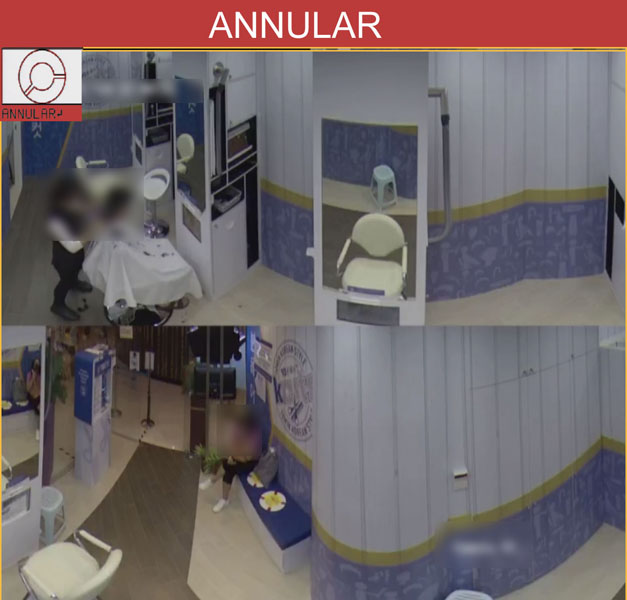

5. Annular
- 2 x Panorama Wide Angle View (Top/Botom)

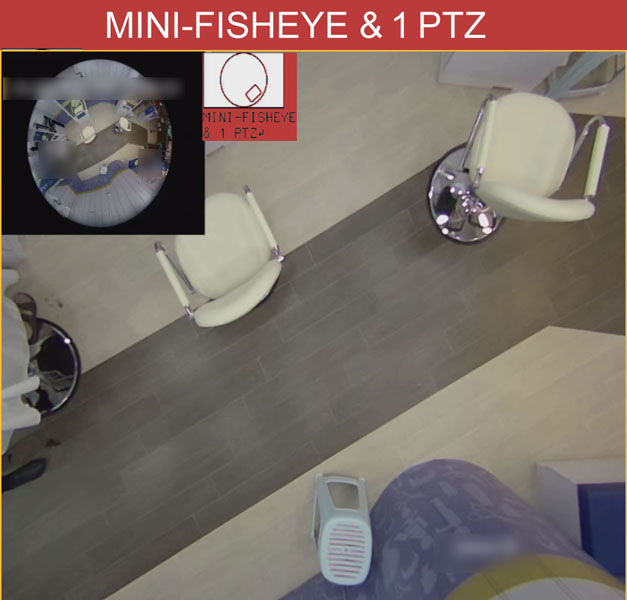

6. Mini-Fisheye & 1 PTZ
- Fisheye View and 1 x Virtual Camera view (adjustable)

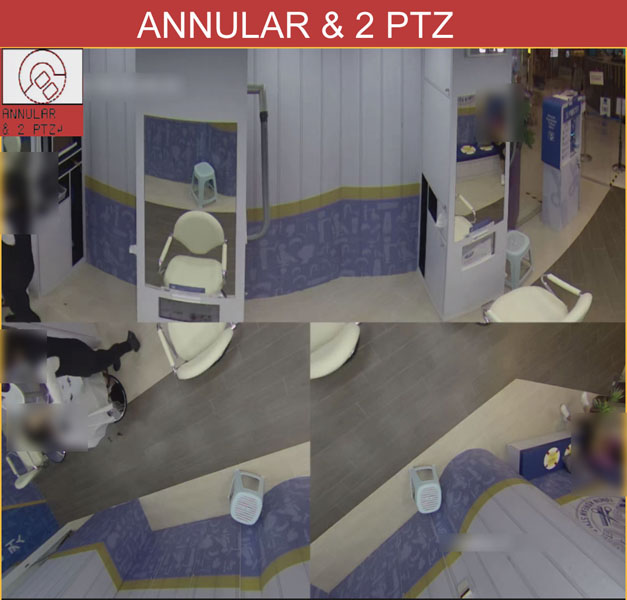

7. Annular & 2 PTZ
- 1 x Panorama View and 2 x Virtual Camera view (adjustable)
The recording will be done according to whichever display mode is selected.
