General Usage of UTP Balun and Network Cable for Connection
Last Updated 8 years ago

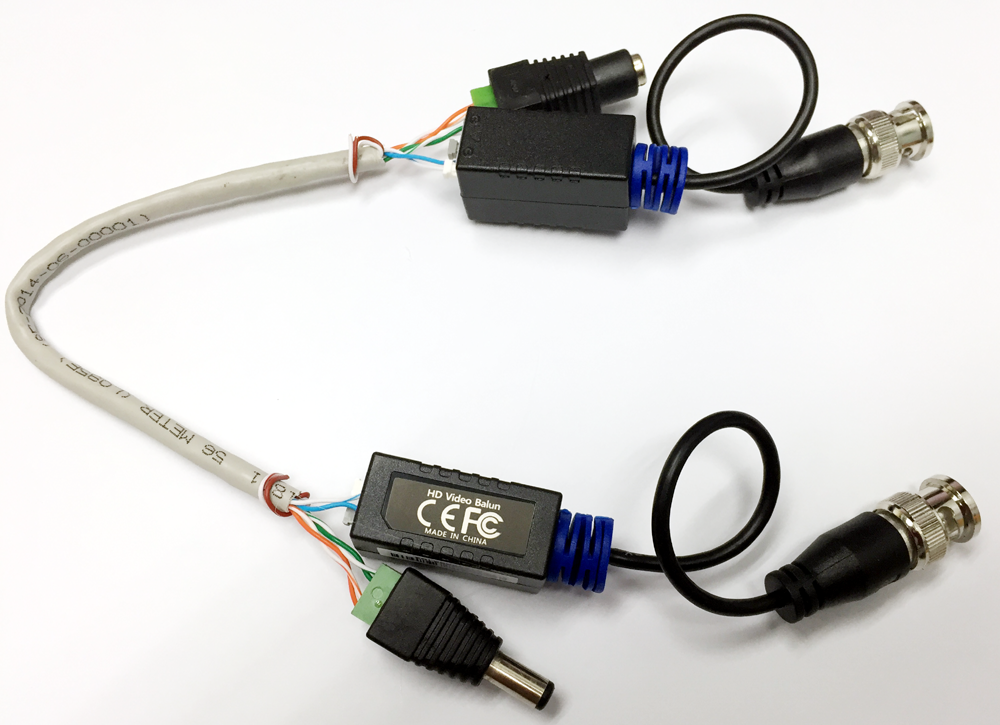

This is how normally a UTP Video Balun is used.
IMPORTANT
Connect the same pair of wire into the UTP Balun.
e.g. Blue and Blue/White. Do not mix the cable or connect more than 1 pair of wire into the UTP Balun.
Each pair of wire are designed to reduce interference on it's own. Mixing them will cause interference.

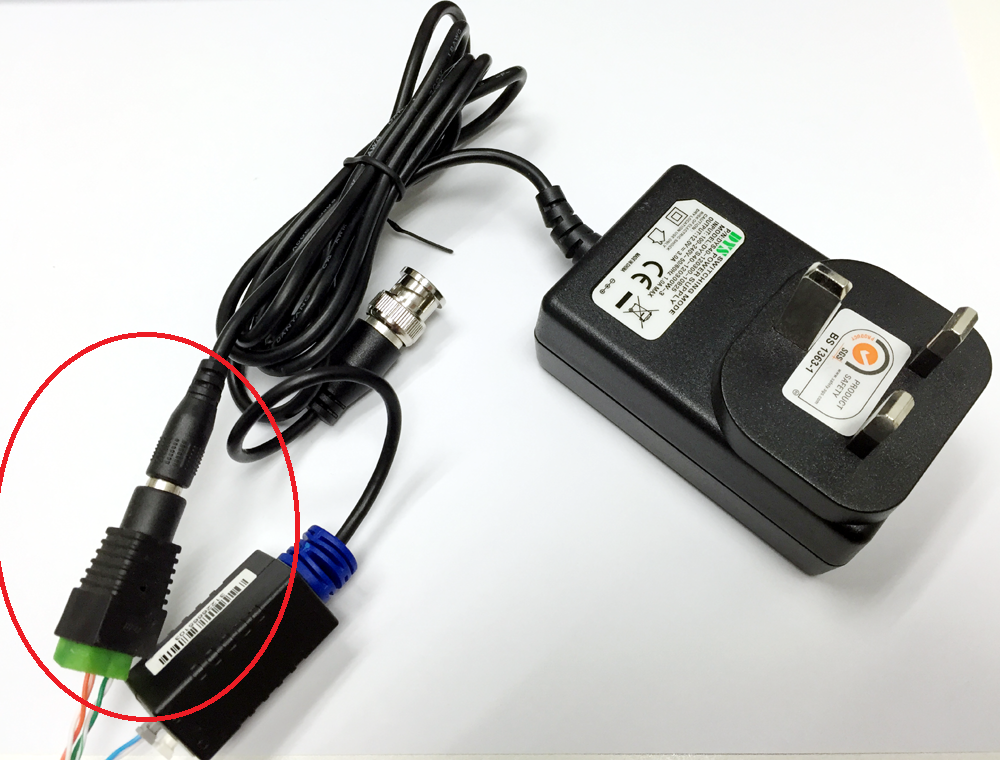

We normally use a DC Power Connector to avoid having to cut the Power Supply's connector.
This enable customer to replace the power adapter easily by using unplugging the old/faulty one and plugging in the new one.
Otherwise if splicing of the wire is needed, there's a possibility that the untrained personal might connect the wrong polarity to the cable and damaged the equipment.

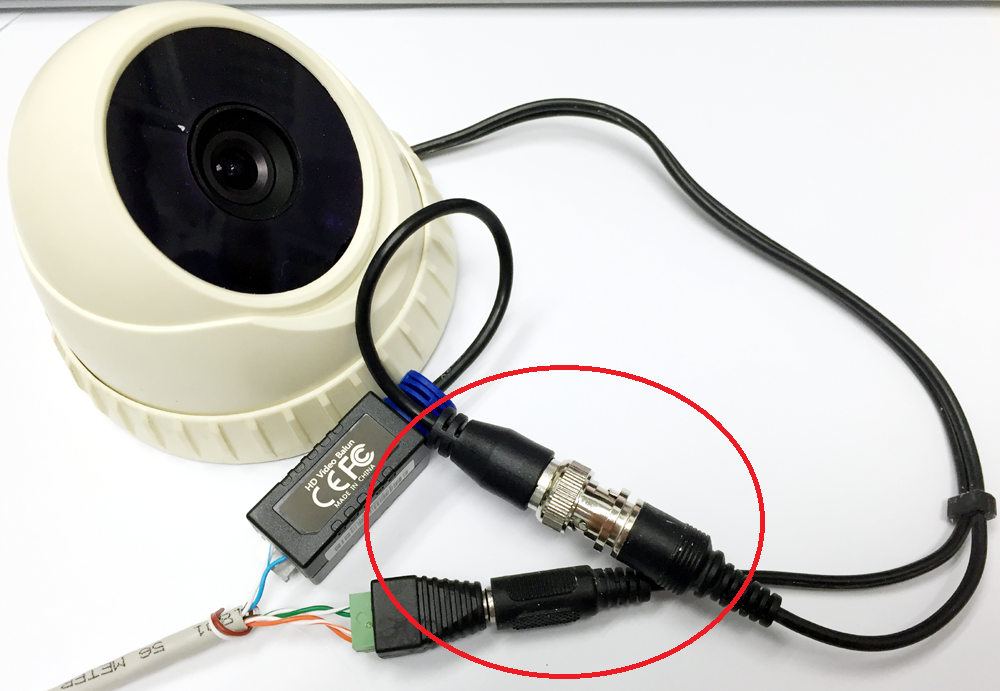

This is how the connection looks like from the camera side.
IMPORTANT
Connect the same pair of wire into the UTP Balun.
e.g. Blue and Blue/White. Do not mix the cable or connect more than 1 pair of wire into the UTP Balun.
Each pair of wire are designed to reduce interference on it's own. Mixing them will cause interference.
We normally use a DC Power Connector to avoid having to cut the Power Supply's connector.
This enable customer to replace the power adapter easily by using unplugging the old/faulty one and plugging in the new one.
Otherwise if splicing of the wire is needed, there's a possibility that the untrained personal might connect the wrong polarity to the cable and damaged the equipment.
This is how the connection looks like from the camera side.
